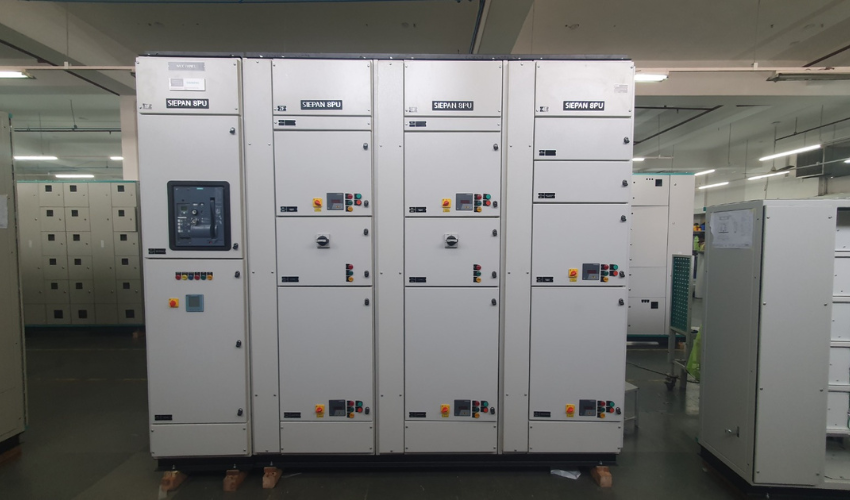

MCC Control Panel
An MCC (Motor Control Center) Control Panel is used for
centralizing motor control operations in industrial and commercial
facilities. It enables safe, efficient, and automated control of
multiple motors in one panel, making it ideal for industries such as
manufacturing, power plants, water treatment, and HVAC systems.
1. Types of MCC Panels
A. Based on Construction
- Fixed Type MCC – Components are mounted on fixed panels.
- Drawout Type MCC – Allows individual motor units to be removed for maintenance without shutting down the entire system.
B. Based on Operation
- Automatic MCC Panel – Integrated with PLC/SCADA for automation.
- Manual MCC Panel – Requires operator intervention for motor control.
- Intelligent MCC (iMCC) Panel – Features smart monitoring, communication, and
predictive maintenance.
C. Based on Motor Starter Type
- DOL (Direct-On-Line) Starter Panel – For small motors (5 HP).
- Star-Delta Starter Panel – For medium-sized motors (5 HP to 150 HP).
- VFD (Variable Frequency Drive) Panel – For variable speed control and energy savings.
- Soft Starter Panel – Reduces mechanical stress on motors during startup.
2. Key Components of MCC Panels
A. Electrical Protection Devices
- CB (Air Circuit Breaker) / MCCB (Molded Case Circuit Breaker) – Protection against short circuits & overloads.
- CB (Miniature Circuit Breaker) – Protects control circuits.
- uses & Overload Relays – Prevents motor damage.
- surge Protection Devices – Protects from voltage fluctuations.
B. Motor Control & Switching Devices
- Contactors – Switches motors ON/OFF.
- Timers & Relays – Control delayed start/stop operations.
- VFD (Variable Frequency Drive) – Controls motor speed & saves energy.
- Soft Starters – Reduces starting current for smooth motor operation.
C. Monitoring & Communication
- Multifunction Meters – Displays voltage, current, power factor, and energy
consumption.
- SCADA & HMI Integration – Enables remote monitoring & control.
- Communication Protocols – Modbus, Profibus, Ethernet/IP for industrial automation.
3. Technical Specifications
- Operating Voltage: 415V AC / 690V AC
- Frequency: 50Hz / 60Hz
- Motor Capacity: 0.5 HP to 500 HP+
- Busbar Material: Copper / Aluminum
- Protection Class: IP42, IP54, IP55, IP65 (Dust & Water Resistance)
- Cooling System: Natural / Forced Cooling with Fans or AC
4. Applications of MCC Panels
- Industries – Steel, Textile, Cement, Paper, Chemical Plants
- Water Treatment Plants – Pump & Motor Control
- Power Plants – Generator & Turbine Control
- HVAC Systems – Ventilation, Chillers, Air Handling Units
- Oil & Gas – Refinery & Pipeline Motor Control
5. Benefits of MCC Panels
- Centralized Motor Control & Monitoring
- Enhances Safety with Advanced Protection Features
- Reduces Downtime with Drawout & Intelligent MCC Options
- Saves Energy with VFD & Smart Control Integration
- Scalable & Customizable for Future Expansions
