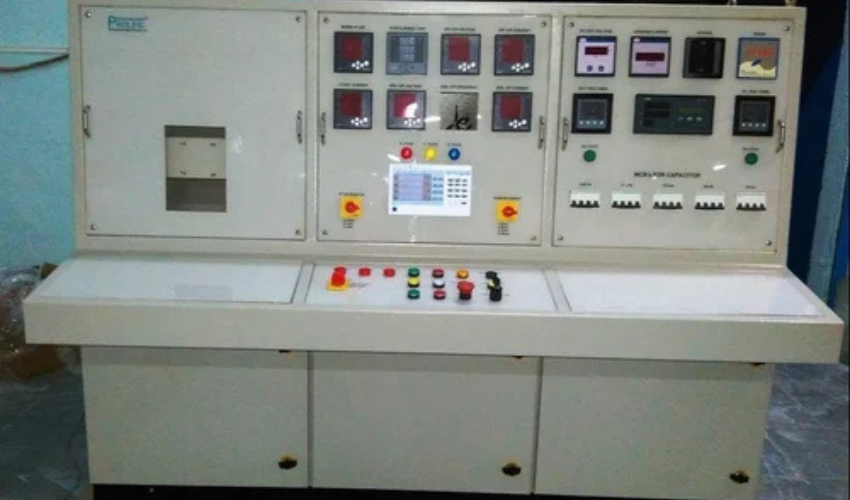

Transformers Test Bench Panels

A Transformer Test Bench Panel is a specialized control panel used for testing distribution transformers, power transformers, and instrument transformers under controlled conditions. It ensures quality, efficiency, and safety by conducting tests like voltage regulation, insulation resistance, no-load losses, load losses, and short-circuit tests.

Types of Transformer Test Bench Panels

1. Manual Transformer Test Panel

• Uses analog meters and manual switches to conduct tests.
• Suitable for basic transformer testing in small-scale applications.

2. Semi-Automatic Transformer Test Panel

• Combines digital meters, relays, and push buttons for faster testing.
• Reduces manual effort while allowing some automation.

3. Fully Automatic Transformer Test Bench

• Uses PLC, SCADA, and computerized control for automated testing.
• Capable of data logging, remote monitoring, and report generation.

Tests Conducted Using Transformer Test Bench Panels

1. No-Load Test (Open Circuit Test)

• Measures core losses and magnetizing current at rated voltage.

2. Short Circuit Test (Load Loss Test)

• Determines copper losses, impedance voltage, and efficiency at rated current.

3. Insulation Resistance Test

• Checks the dielectric strength of transformer insulation using a Megger.

4. Induced Voltage Test

• Verifies insulation strength by applying twice the rated voltage at a higher frequency.

5. High Voltage (HV) Withstand Test

• Ensures the primary and secondary windings can withstand high voltage surges.

6. Turns Ratio Test

• Confirms the turns ratio of primary and secondary windings using a TTR Meter.
